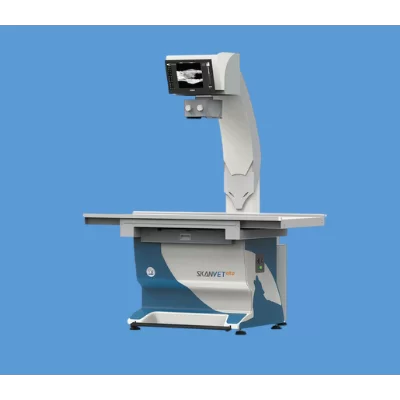

ScanVet Alta X-Ray Table

Digital Veterinary X-Ray for Companion Animals

The SkanVet Alta series is the most adaptable, customizable, feature-rich veterinary system on the market.

We offer low pricing for this x-ray machine!

Get a Quote

$0.00

$0.00 Tax excluded

Quality Products
Lowest Prices
Great Customer Service
Reliable Delivery
Secure Shopping
Description

Features: SkanVet Alta Series Type A, Type I & Type X

  • Digital Radiographic table for veterinary applications
  • 32 kW output power, 40 to 125 kV, 25 to 400 mA with auto association to kV, 0.1-320 mAs.
  • Double focus 0.6/1.3 rotating anode RX tube
  • Mains voltage compensation, filament stabilization and overload protections
  • 2 or 3 points technique (3 points on Type A only)
  • Integrated 10” or 19” high res. color touch display
  • Wired or Wireless 17”x17” or 14”x17” digital detector
  • Fixed, 100 cm SID
  • Standard removable cassette tray (Bucky)
  • Optional X-ray grid
  • 4-way floating tabletop
  • Foot-bar operated mechanical brakes
  • Integrated or external PC workstation with user friendly TigerView 8 Veterinary imaging software
  • Animal-patient database, APR’s for separate anatomies
  • Password protected exposure counter (on Type A only)
  • Single action foot & hand-switch

RE Image Retrofit Combo for Veterinary:

  • Tethered or Wireless 17” x 17” or 14”x 17” Digital Flat Panel Detector for use with existing RX imaging table as retrofit digital solution
  • Includes customized TigerView 8 Veterinary digital imaging and treatment software
  • Scintillator type: Direct Deposit CsI
  • Active areas: 433.7mm x 354.8mm (17” x 14.9”) or 434mm x 434mm (17” x 17”)
  • Pixel Array: 2816 x 2304 or 2816 x 2816
  • Pixel Pitch: 154 μm
  • Limiting resolution: 3.25 lp/mm or 3.3 lp/mm
  • Image acquisition time: 2-3s (wired), 4-5s (wireless)
  • Housing material: Carbon Fiber (front) & High Strength Aluminum (back)
